Shredder V4 Pro
Shredder V4 Pro
Semi-industrial machines to set up your recycling project, much more robust and with many more features than the previous shredders.
Precious Plastic Capi Spain offer the cutting parts for this shredder, according to the original Precious Plastic drawings.
BASIC OPTION – REGULAR STEEL LASER CUT PARTS
Basic options incluyed::
BODY PARTS ( 113 UNITS )
+
BLADES & TEETH
( 98 UNITS)
TOTAL = 223 PARTS made of regular steel
🧱 ADDITIONAL OPTIONS
Optionally you can add;
-> Basic Hopper.
Set of 5 pieces in regular steel (approx. 7.6 kg) to get the basic hopper.
-> Sieve Holder.
Set of 9 pieces in regular steel (approx 2,4 kg) to get the Sieve Holder (Sieve NOT included).
–> V4Pro Shedder Shafts Kit
Set of 2 shafts, 6 bearings and 4 slotted nuts.
BODY PARTS
Set of pieces for the shredder body, made of regular steel according to Precious Plastic’s original drawing; In total there are 123 parts with an approximate weight of 51 kg ( 112,5 lb)
| Denominación Piezas | Nº Plano | Nº Piezas | Espesor |
|---|---|---|---|
| Bearing Spacer 6mm 1 | SHRPRO-V1 1100.06 | 4 | 6 |
| Bearing Spacer 6mm 2 | SHRPRO-V1 1100.07 | 4 | 6 |
| Bearing spacer 1mm | SHRPRO-V1 1100.08 | 4 | 1 |
| Top plate box | SHRPRO-V1 1110.01 | 1 | 10 |
| Bottom plate box | SHRPRO-V1 1110.02 | 1 | 10 |
| Fixed blades plate 1 | SHRPRO-V1 1110.03 | 1 | 10 |
| Fixed blades plate 2 | SHRPRO-V1 1110.04 | 1 | 10 |
| Bearing side plate 1 | SHRPRO-V1 1110.05 | 1 | 10 |
| Bearing side plate 2 | SHRPRO-V1 1110.06 | 1 | 10 |
| Bearing side plate 3 | SHRPRO-V1 1110.07 | 1 | 10 |
| Bearing side plate 4 | SHRPRO-V1 1110.08 | 1 | 10 |
| Bearing side plate 5 | SHRPRO-V1 1110.09 | 1 | 10 |
| Bearing side plate 6 | SHRPRO-V1 1110.10 | 1 | 10 |
| Gear cover | SHRPRO-V1 1110.11 | 1 | 5 |
| Spacer 4mm | SHRPRO-V1 1120.14 | 51 | 4 |
| Spacer 2,5mm | SHRPRO-V1 1120.15 | 49 | 2,5 |
BLADES & TEETH
Set of parts for the blades and teeth of the shredder, made of regular steel according to Precious Plastic’s original drawing;
In total there are 98 pieces with an approximate weight of 32 kg (70,5 lb).
| Denominación Piezas | No Plano | Nº Piezas | Espesor |
|---|---|---|---|
| 6 Teeth blade 1 | SHRPRO-V1 1120.01 | 2 | 6 |
| 6 Teeth blade 2 | SHRPRO-V1 1120.02 | 2 | 6 |
| 6 Teeth blade 3 | SHRPRO-V1 1120.03 | 2 | 6 |
| 6 Teeth blade 4 | SHRPRO-V1 1120.04 | 2 | 6 |
| 6 Teeth blade 5 | SHRPRO-V1 1120.05 | 2 | 6 |
| 6 Teeth blade 6 | SHRPRO-V1 1120.06 | 2 | 6 |
| 6 Teeth blade 7 | SHRPRO-V1 1120.07 | 2 | 6 |
| 6 Teeth blade 8 | SHRPRO-V1 1120.08 | 2 | 6 |
| 6 Teeth blade 9 | SHRPRO-V1 1120.09 | 2 | 6 |
| 6 Teeth blade 10 | SHRPRO-V1 1120.10 | 2 | 6 |
| 6 Teeth blade 11 | SHRPRO-V1 1120.11 | 2 | 6 |
| 6 Teeth blade 12 | SHRPRO-V1 1120.12 | 2 | 6 |
| 13 Teeth blade | SHRPRO-V1 1130.01 | 23 | 6 |
| Fixed Blade 6 mm | SHRPRO-V1 1100.01 | 47 | 6 |
| Fixed blade 4 mm | SHRPRO-V1 1100.02 | 4 | 4 |
We have a variant, with our set of “Blades and Teeth” (98 pieces) in Harneded Steel.
Not included the sieve, the shaft, bearings, etc. the manipulation of the pieces (sanding, threading, etc...).
Basic options incluyed:
- Body parts (113 parts)
- Blades & Teeth (98 parts )
Total 223 parts
Optionally you can add;
- Basic Hopper. Set of 5 parts in regular steel (approx. 7.6 kg) to get the basic hopper.
- Sieve Holder. Set of 9 parts in regular steel (approx 2,4 kg) to get the Sieve Holder (Sieve NOT included).

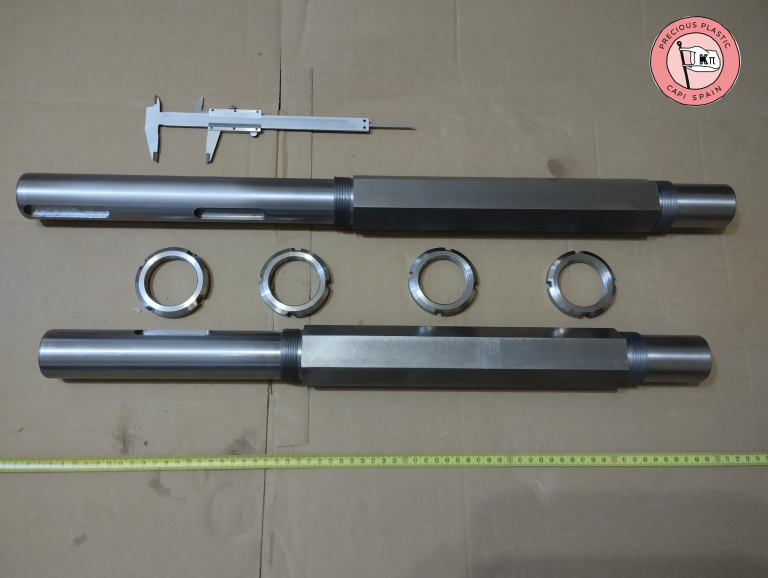

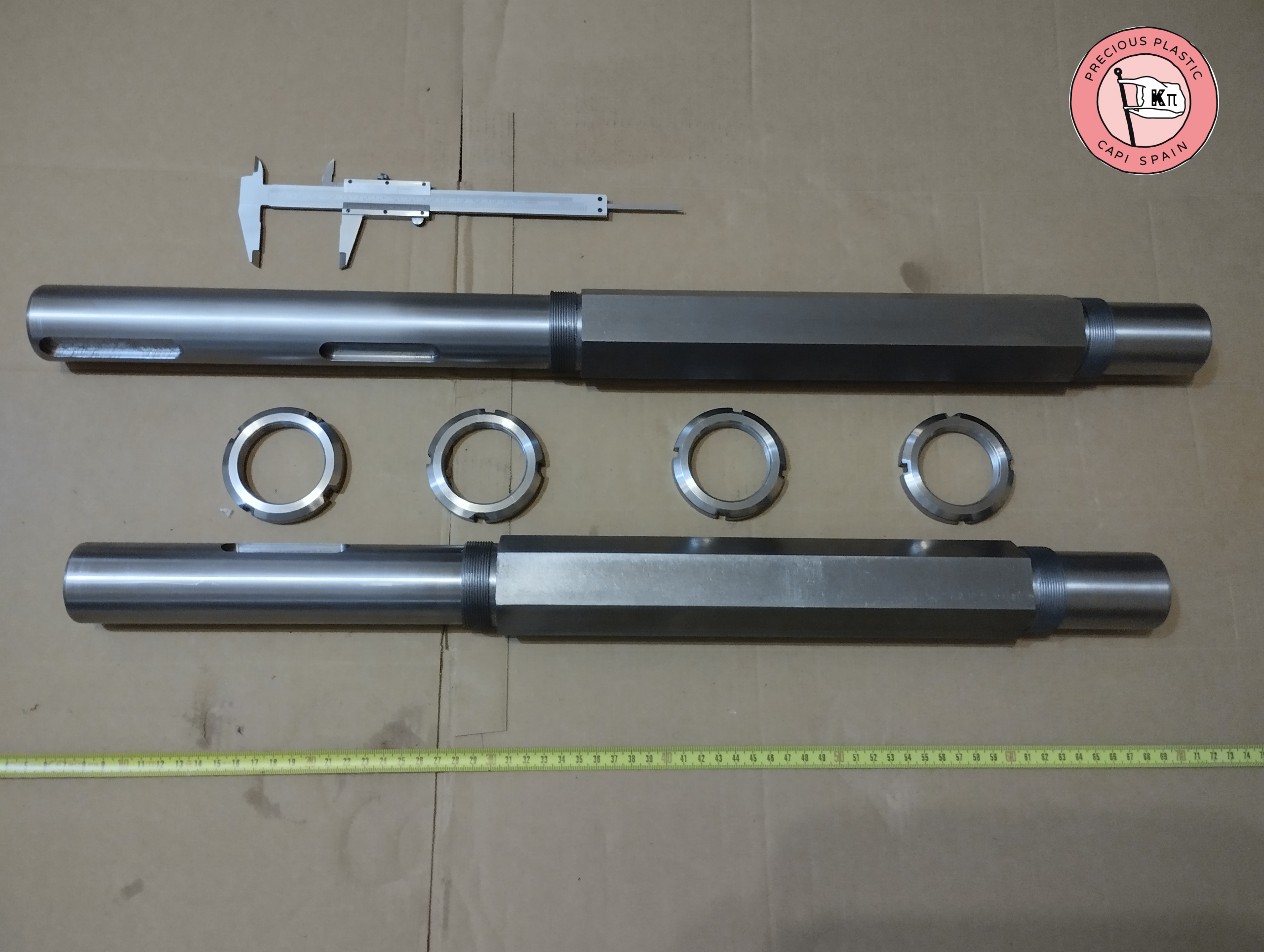

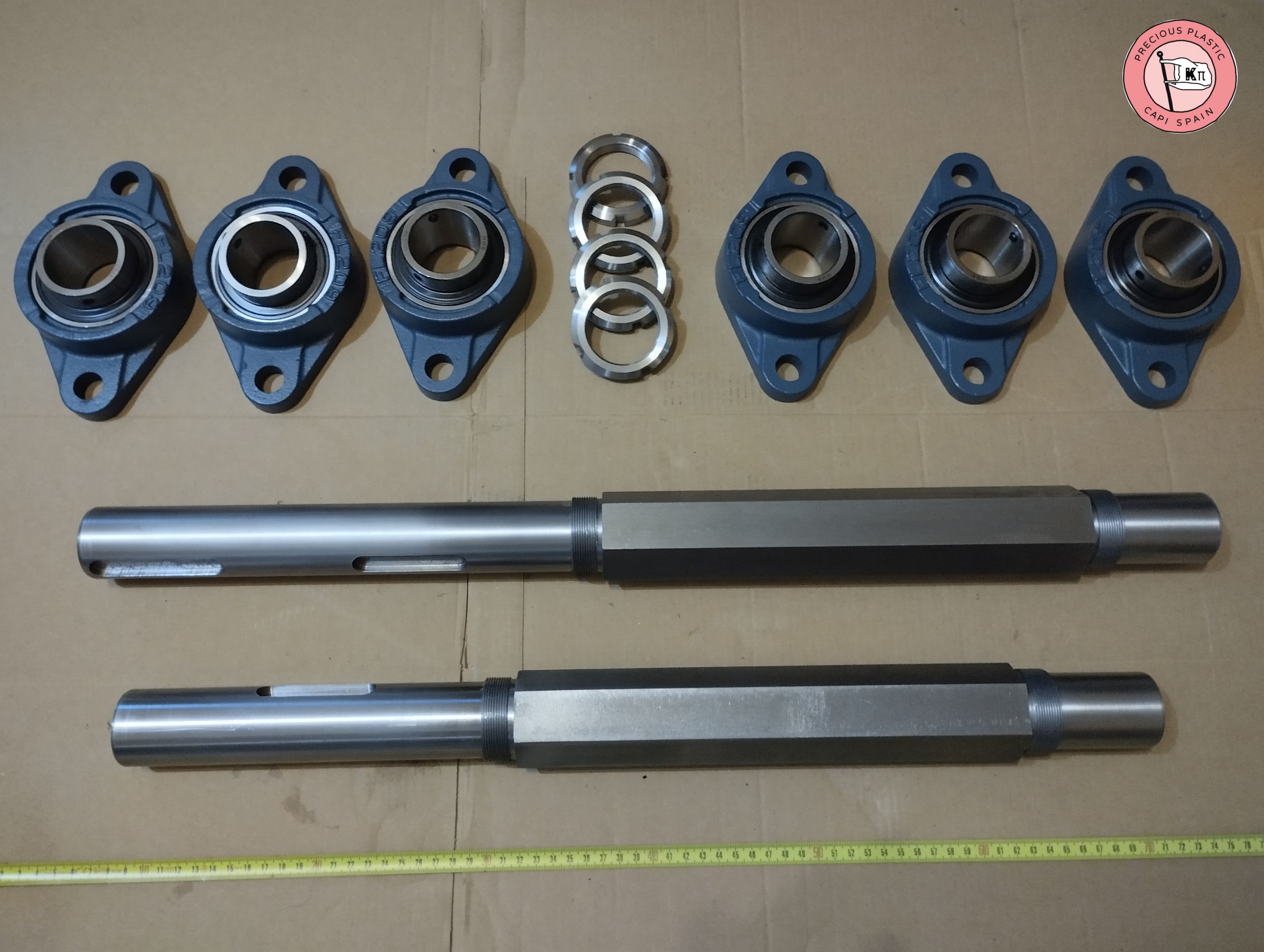

V4PRO SHREDDER SHAFTS KIT
We also offer a kit for the Shredder V4Pro shafts, consisting of:
1 shaft made of regular steel. According to Precious Plastic drawings. SHRPRO-V1 1120.13, .
1 shaft made of regular steel. According to Precious Plastic drawings. SHRPRO-V1 1130.02.
6 units bearings UCFL-209, according to Precious Plastic specifications
4 units, SLOTTED NUTS, KM10.
DATA SHEET
We are working to provide optimized plans and technical documentation. In the meantime, we can share basic recommendations and support through our technical team
GALLERY

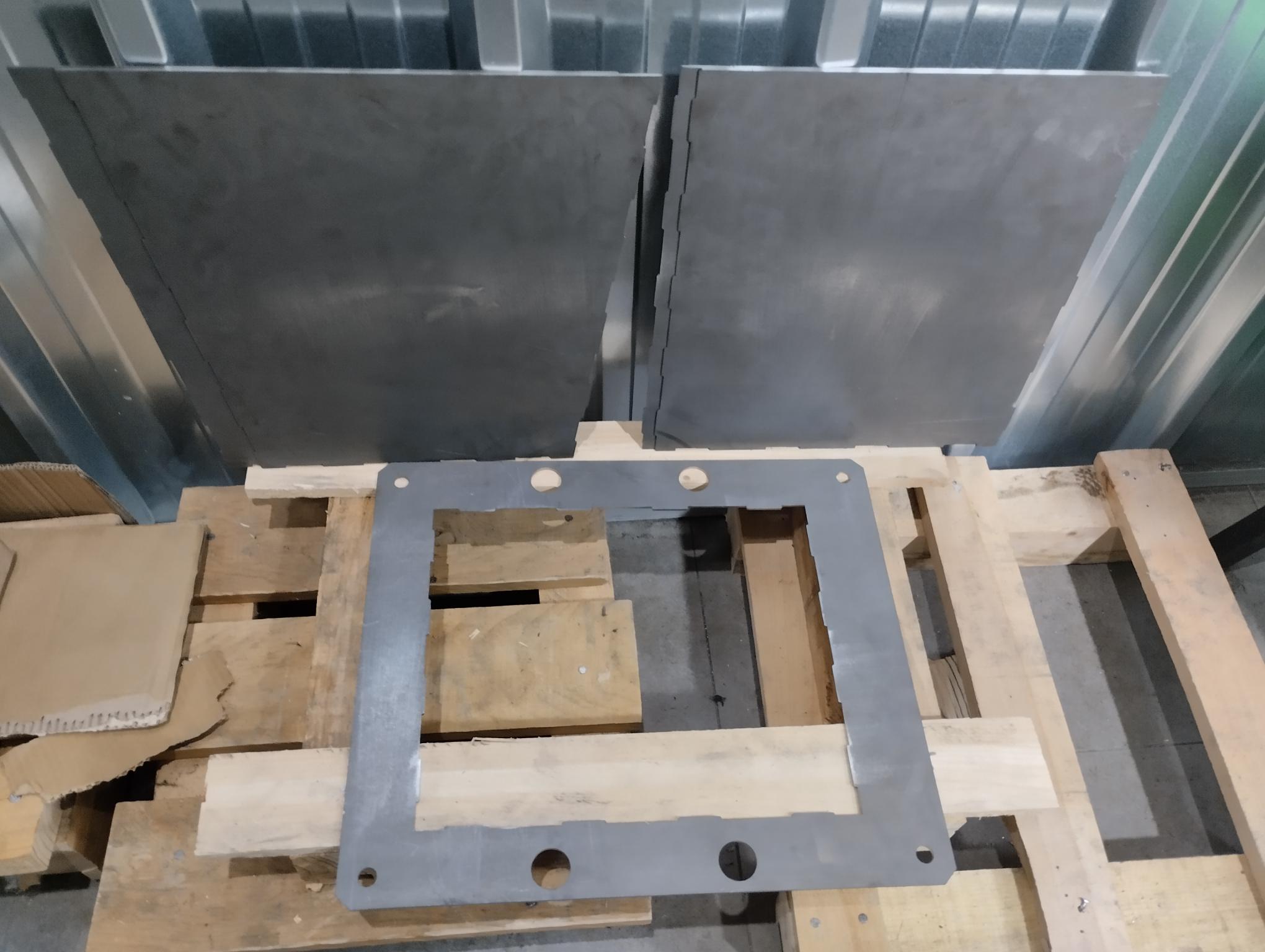

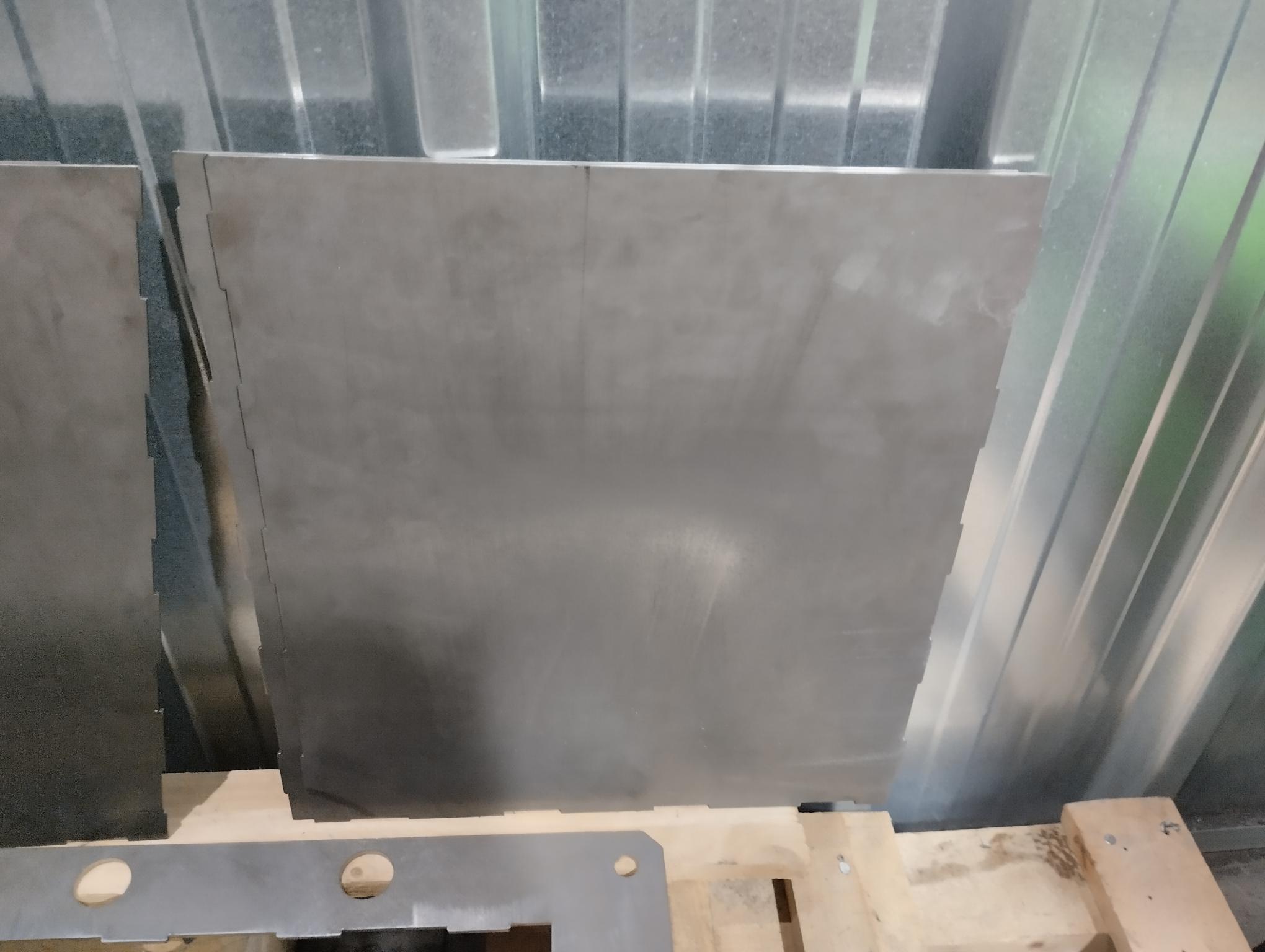

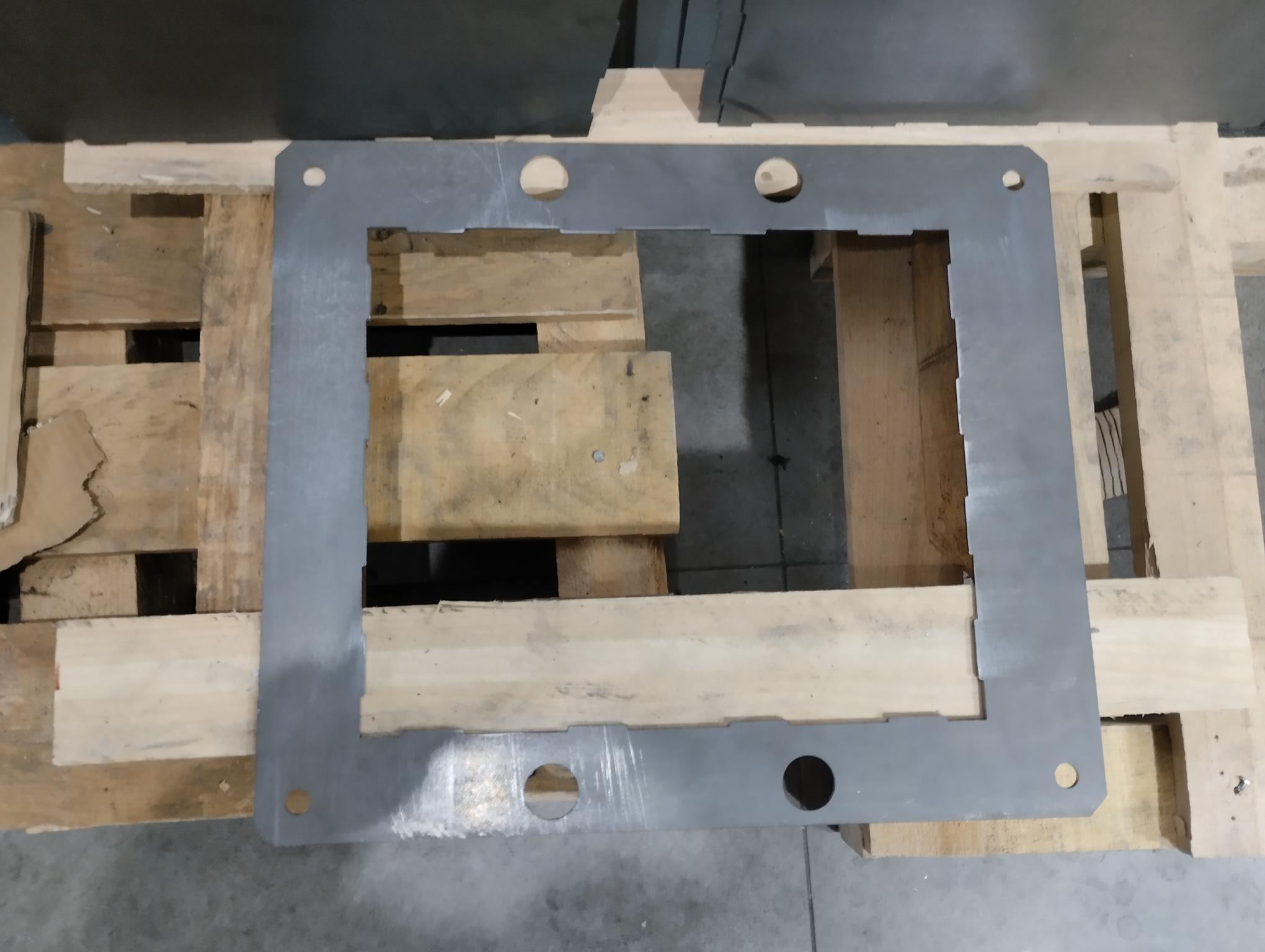

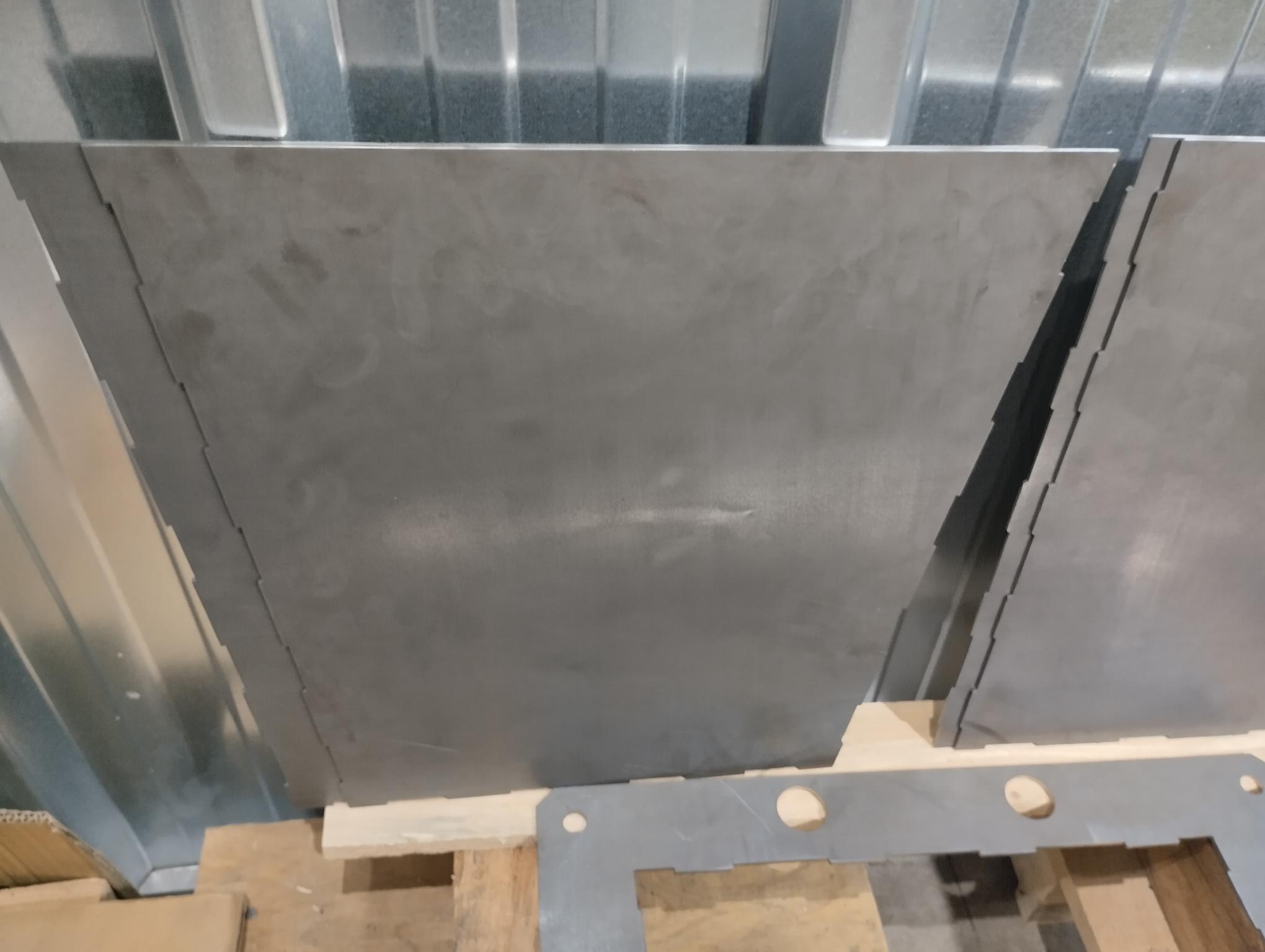

Basic Hopper Details
